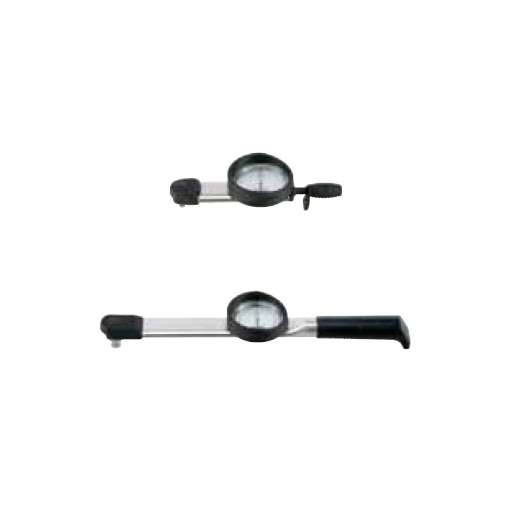

Chei dinamometrice cu ceas DB/DBE/DBR

Chei dinamometrice cu ceas DB/DBE/DBR

- chei dinamometrice de inspectie

- ac indicator martor pentru citirea usoara a cuplului

- ideale pentru masurarea cuplului si a aplicatiilor de verificare

Solicita oferta

Download PDF

Niciun produs auxiliar nu a fost gasit!

S.I. Model	Gama cuplu [ Nm]		Metric Model	Gama cuplu [kgf-cm/kgf-m]		American Model	Gama cuplu [lbf-in/lbf-ft]		Lungime (mm)	Patrat unitate (mm)	Greutate (g)
S.I. Model	Min-Max	Citire	Metric Model	Min-Max	Citire	American Model	Min-Max	Citire	Lungime (mm)	Patrat unitate (mm)	Greutate (g)
DB1.5N4-S	0.2-1.5	0.02	15DB4-S	2-15	0.2	DB13I-2AS	0-13	0.2	205	6.35	0.4
DB3N4-S	0.3-3	0.05	30DB4-S	3-30	0.5	DB26I-2AS	0-26	0.5
DB6N4-S	0.6-6	0.1	60DB4-S	6-60	1	DB40I-2AS	0-40	0.5
DB12N4-S	1-12	0.2	120DB4-S	10-120	2	DB75I-2AS	0-75	1
DB25N-S	3-25	0.5	230DB3-S	30-250	5	DB150I-3AS	0-150	2	245	9.5	0.6
DB50-S	5-50	0.5	450DB3-S	50-5000	5	DB300I-3AS	0-300	5	320
-	-	-	-	-	-	DB600I-3AS	0-600	10	400
DB100N-S	10-100	1	900DB3-S	100-1000	10	DB600I-4AS	0-600	10	400	12.7	0.7
-	-	-	-	-	-	DB25F-3AS	0-25	0.5	320	9.5	0.6
-	-	-	-	-	-	DB50F-3AS	0-50		400	9.5	0.7
-	-	-	-	-	-	DB50F-4AS	0-50		400	12.7	0.7
DB200N-S	20-200	2	1800DB3-S	200-2000	20	DB100F-4AS	0-100	1	500	12.7	1.0
-	-	-	-	-	-	DB175F-4AS	0-175	2	540	12.7	1.0
DB280N-S	30-280	5	2800DB3-S	3-28	0.5	DB250F-6AS	0-250	5	690	19.0	1.65
DB420N-S	40-420		4200DBE2-S	4-42		DB350F-6AS	0-350	5	890		2.5
DBE560N-S	50-560		5600DBE2-S	5-56		-	-	-	1100		4.0
DBE700N-S	70-700	10	7000DBE2-S	7-70	1	DB500F-6AS	0-500	10	1260		5.5
DBE850N-S	100-850		8500DBE2-S	10-85		-	-	-	1360	25.4	6.1
DBE1000N-S	100-1000		10000DBE2-S	10-100		DB800F-8AS	0-800	10	1490		6.4
DBE1400N-S	200-1400	20	14000DBE2-S	20-140	2	DB1000F-8AS	0-1000	10	1740		8.6
DBE2100N-S	200-2100	20	28000DBE2-S	20-210	2	DB1500F-8AS	0-1500	20	2140		12.8
DBE2800N-S	300-2800	50	28000DBE2-S	30-280	5	DB2000F-12AS	0-2000	20	2380	38.1	16.8
DBE4500N-S	500-4500		45000DBR-S	50-450		DB3000F-12AS	0-3000	50	1285	38.1	24.5
DBE6000N-S	600-6000		60000DBR-S	60-600		-	-	-	1585	44.5	25.5
