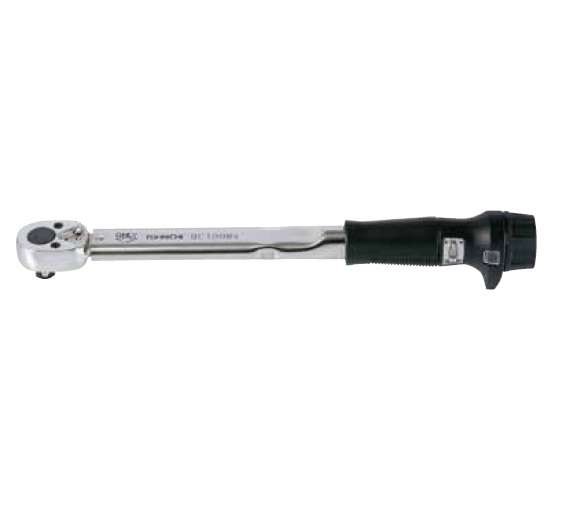

Chei dinamometrice QL

- chei dinamometrice de stringere modelul QL : cu clicket , moment reglabil

- declansare automata la atingerea momentului setat

- reglarea momentului de stringere pe miner cu citire pe scala exterioara

- cea mai folosita in operatiile de stringere la moment controlat , in toate domeniile

Solicita oferta

Download PDF

Niciun produs auxiliar nu a fost gasit!

S.I. Model	Gama cuplu [ cN-m]		Metric Model	Gama cuplu [kgf-cm]		American Model	Gama cuplu [ozf-in/lbf-in]		Lungime (mm)	Patrat unitate (mm)	Greutate (g)
S.I. Model	Min-Max	Grad	Metric Model	Min-Max	Grad	American Model	Min-Max	Grad	Lungime (mm)	Patrat unitate (mm)	Greutate (g)
	N-m	N-m		Kgf-cm	Kgf-cm		Ibf-in	Ibf-in	160	6.35	0.16
QL1.5N4	0.3-1.5	0.01	15QL4	3-15	0.1	15QL4-A	3-15	0.1
QL3N4	0.6-3	0.02	30QL4	6-30	0.2	30QL4-A	6-30	0.2
QL6N4	1-6	0.05	60QL4	10-60	0.5	QL50I-2A	10-60	0.5	195		0.19
QL12N4	2-12	0.1	120QL4	20-120	1	QL100I-2A	20-120	1	195		0.25
QL25N	5-25	0.25	225QL3	50-250	2.5	QL200I-3A	50-250	2.5	230		0.25
QL50N	10-50	0.5	450QL3	100-500	5	QL400I-3A	100-500	5	260	9.53	0.45
-	-	-	-	-	-	QL750I-3A	150-750	10	335		0.69
							Lbf-ft	Lbf-ft
-	-	-	-	-	-	QL75F-3A	15-75	1
QL100N4	20-100	1	900QL4	200-1000	10	-	-	-		12.7
QL140N	30-140	1	1400QL3	300-1400	10	QL100F-4A	30-100	1	400		0.88
QL200N4	40-200	2	1800QL4	400-2000	20	QL150F-4A	30-150	2	490		1.4
				Kgf-m	Kgf-m				695	19.05	2.0
QL280N	40-280		2800QL3	4-28	0.2	-	-	-	695		2.0
QL420N	60-420		4200QL2	6-42	0.2	QL300F-6A	60-300	2	995		3.4
QLE550N	100-550	5	5500QLE	10-55	0.5	QL400F-6A	100-400	5	1195		5.1
QLE750N	100-750		7500QLE	10-75		QL600F-6A	100-600		1370		7.1
QLE1000N	100-1000		10000QLE	10-100		QL700F-8A	100-700		1540	25.4	9.5
QLE1400N	200-1400	10	14000QLE	20-140	1	QL1000F-8A	150-1000	10	1795		13.1
QLE2100N	500-2100	20	21000QLE	50-210	2	QL1500F-8A	600-1500	20	1950		20.0
